Smart Battery Chargers for Generator Starting Batteries
Compare five 12V / 24V battery charger configurations for generator starting batteries and backup power systems.
Quick Model Comparison
Start with charging current, display and control functions, then open each model for additional functions and dimensions.
CMA90
Supports panel voltage and battery-type selection together with boost/float charging.
- Output
- 12V / 5A or 24V / 3A
- Display
- Power and fault indication
- Control
- 12/24V and lead-acid/Ni-Cd selection
CMC200
Compared with CMA90, CMC200 provides higher charging current and adds digital current/voltage display, temperature compensation and boost-voltage setting.
- Output
- 12V / 10A or 24V / 8A
- Display
- Digital current and voltage
- Control
- Battery selection plus charging settings
CM360
With RS485 communication and remote on/off, plus alarm functions and charging-parameter settings.
- Output
- 12V / 15A or 24V / 12A
- Display
- Digital voltage / current
- Control
- RS485 + remote on/off
- Functions
- Temperature compensation, alarm and charging settings
CM600
Provides 20A at either 12V or 24V, with RS485 communication and remote on/off.
- Output
- 12V / 20A or 24V / 20A
- Display
- Digital voltage / current
- Control
- RS485 + remote on/off
- Functions
- Temperature compensation, alarm and charging settings
CM1000
Provides 40A at either 12V or 24V, with RS485 communication and remote on/off.
- Output
- 12V / 40A or 24V / 40A
- Display
- Digital voltage / current
- Control
- RS485 + remote on/off
- Functions
- Temperature compensation, alarm and charging settings
Complete Smart Battery Charger Model Range
Review the five models, then open the function and dimension sections when you need more detail.
Smart Battery Charger

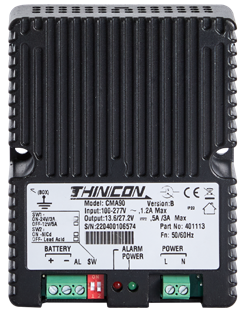

CMA90
A 12V / 24V charger with panel voltage and battery-type selection plus boost/float charging.
Functions & Protection
- Boost and float charging
- Negative fault-signal output
- Power and fault indication
Dimension Drawing
Dimensions are shown in millimetres.
Smart Battery Charger

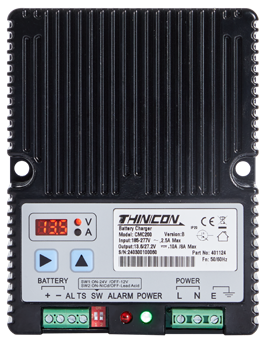

CMC200
Compared with CMA90, CMC200 provides higher charging current and adds digital current/voltage display, temperature compensation and boost-voltage setting.
Functions & Protection
- Boost and float charging
- Temperature compensation
- Boost-voltage setting
- Negative fault-signal output
- Power and fault indication
Dimension Drawing
Dimensions are shown in millimetres.
Smart Battery Charger

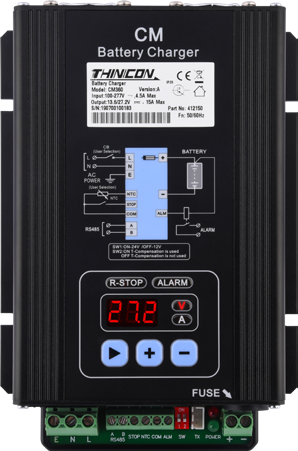

CM360
A 12V / 24V smart charger with RS485 communication and remote on/off, plus alarm and charging-parameter settings.
Functions & Protection
- Temperature compensation
- Remote on/off
- Overcurrent fault output
- Fault indication and audible-visual alarm
- Charging-parameter settings
Dimension Drawing
Dimensions are shown in millimetres.
Smart Battery Charger

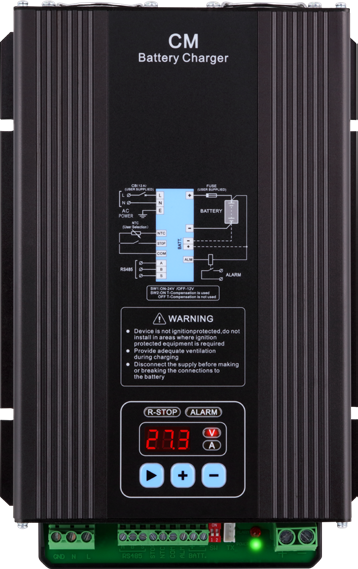

CM600
A 12V / 24V smart charger rated at 20A for either battery voltage, with RS485 communication and remote on/off.
Functions & Protection
- Temperature compensation
- Remote on/off
- Overcurrent fault output
- Fault indication and audible-visual alarm
- Charging-parameter settings
Dimension Drawing
Dimensions are shown in millimetres.
Smart Battery Charger
CM1000
A 12V / 24V smart charger rated at 40A for either battery voltage, with RS485 communication and remote on/off.
Functions & Protection
- Temperature compensation
- Remote on/off
- Overcurrent fault output
- Fault indication and audible-visual alarm
- Charging-parameter settings
Dimension Drawing
Dimensions are shown in millimetres.
Request Charger Model Matching
Send the battery voltage and type, required charging current, available AC input, generator application, communication needs and quantity.
